58.34.9.024.0050 | Finder
Coupling relay 4 Form C (NO/NC), 24 V (DC), 7 A, 250 V (AC), 58.34.9.024.0050
Unit Price (€ / pc.)
23.0027 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
23.00 € *
Price list
Quantity
Price per unit*
1 pcs.
23.0027 €
5 pcs.
22.0031 €
10 pcs.
20.8012 €
20 pcs.
19.7183 €
*incl. VAT plus shipping costs
Subject to prior sale

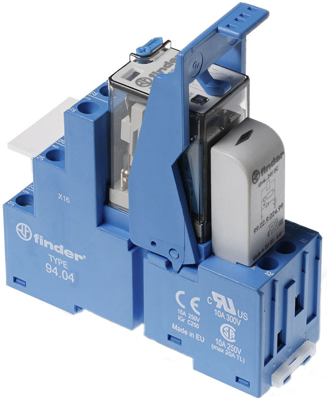

Coupling relay, 58.34.9.024.0050, Finder
Coupling relay for DIN-rail with screw terminals, 4 CO contact 7 A / 250 V AC coil voltage 24 V DC contact material AgNi, with integrated LED and EMC suppression
Features
- AC coils and DC coils
- Supply status indication and coil suppression module as standard
- Identification label
- UL Listing (certain relay/socket combinations)
- 35 mm rail (EN 50022) mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 250 V | |
| Rated current | 7 A | |
| Degree of protection (IP) | IP20 | |
| Product type | coupling relay | |
| Connection | screw connection | |
| Contact type | 4 Form C (NO/NC) | |
| Status display | LED, green | |
| Coil voltage (DC) | 24 V | |
| Contact material | AgNi |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
