58.34.8.230.5060 | Finder
Coupling relay 4 Form C (NO/NC), 230 V (AC), 7 A, 250 V (AC), 58.34.8.230.5060
Order No.: 34G1397
EAN: 8012823351308
MPN:
58.34.8.230.5060
583482305060
Unit Price (€ / pc.)
30.4283 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
30.43 € *
Price list
Quantity
Price per unit*
1 pcs.
30.4283 €
3 pcs.
29.1074 €
5 pcs.
27.5128 €
10 pcs.
26.0848 €
*incl. VAT plus shipping costs
Subject to prior sale

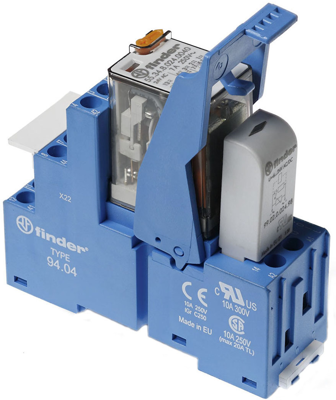

Relay interface module, 58.34.8.230.5060, Finder
4 CO relay interface modules, 27 mm wide with Box clamp, Ideal interface for PLC and electronic systems.
Features
- Box clamp
- Supply status indication and EMC coil suppression module as standard
- Identification label
- Cadmium-free contact material
Technical specifications
| Coil voltage (AC) | 230 V | |
| Connection | screw connection | |
| Rated current | 7 A | |
| Contact material | AgNi | |
| Degree of protection (IP) | IP20 | |
| Contact type | 4 Form C (NO/NC) | |
| Product type | coupling relay | |
| Rated voltage (AC) | 250 V |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
