4C.52.8.230.0060 | Finder
Coupling relay 2 Form C (NO/NC), 250 V (AC), 8 A, 230 V (AC), 4C.52.8.230.0060
Not suitable for new designs
Unit Price (€ / pc.)
24.0142 € *
Standard delivery time from the manufacturer is: 1 Week

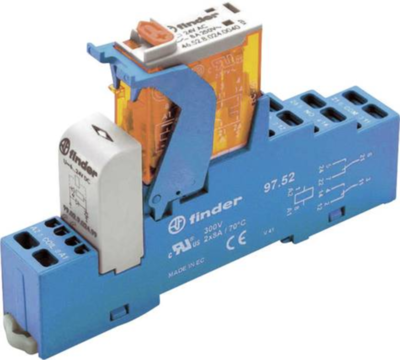

Coupling relay, 4C.52.8.230.0060, Finder
Coupling relay for DIN rail with tension spring terminals, 2 changeover contacts 8 A / 250 V AC coil voltage 230 V AC. Contact material AgNi, with integrated LED and EMC suppression.
Features
- AC coils or DC coils
- Supply status indication and coil suppression module as standard
- Identification label
- UL Listing (certain relay/socket combinations)
- 35 mm rail (EN 60715) mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Status display | LED | |
| Connection | spring-clamp connection | |
| Degree of protection (IP) | IP20 | |
| Rated voltage (AC) | 230 V | |
| Contact material | AgNi | |
| Coil voltage (AC) | 250 V | |
| Product type | coupling relay | |
| Contact type | 2 Form C (NO/NC) | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
