4C.01.9.048.0050 | Finder
Coupling relay 1 Form C (NO/NC), 48 V (DC), 16 A, 250 V (AC), 4C.01.9.048.0050
Order No.: 34G2656
EAN: 8012823308388
MPN:
4C.01.9.048.0050
4C0190480050
Unit Price (€ / pc.)
19.3137 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
19.31 € *
Price list
Quantity
Price per unit*
1 pcs.
19.3137 €
5 pcs.
18.4688 €
10 pcs.
17.4573 €
20 pcs.
16.5529 €
*incl. VAT plus shipping costs
Subject to prior sale

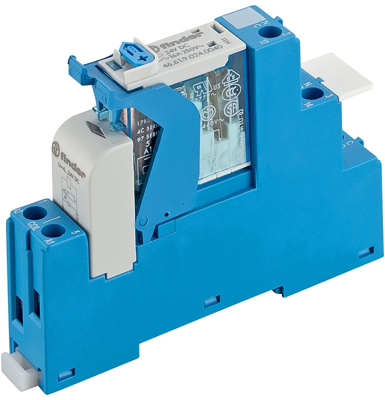

Relay Interface Module, 4C.01.9.048.0050, Finder
Relay Interface Module, 1 CO 16 A, screw terminals, 15.8 mm wide. For interfacing with PLC systems. Equipped with identification plate plus Supply status and EMC coil suppression module. Suitable for mounting on 35 mm rail (EN 60715).
Features
- Coil Indication and EMC suppression module
- Identification label
- UL Listing (relay/socket/jumper link)
- Cadmium-free contacts
Applications
- Escalators
- Road / tunnel lighting
- Hoists and cranes
- Carousel warehouses
- Control panels
- Panels for electrical distribution
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 16 A | |
| Contact material | AgNi | |
| Degree of protection (IP) | IP20 | |
| Coil voltage (DC) | 48 V | |
| Status display | LED, green | |
| Contact type | 1 Form C (NO/NC) | |
| Rated voltage (AC) | 250 V | |
| Connection | screw connection | |
| Product type | coupling relay | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
