49.72.7.024.0050 | Finder
Coupling relay 2 Form C (NO/NC), 24 V (DC), 8 A, 250 V (AC), 49.72.7.024.0050
Not suitable for new designs
Unit Price (€ / pc.)
21.4914 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
21.49 € *
Price list
Quantity
Price per unit*
1 pcs.
21.4914 €
5 pcs.
20.5632 €
10 pcs.
19.4327 €
20 pcs.
18.4212 €
*incl. VAT plus shipping costs
Subject to prior sale

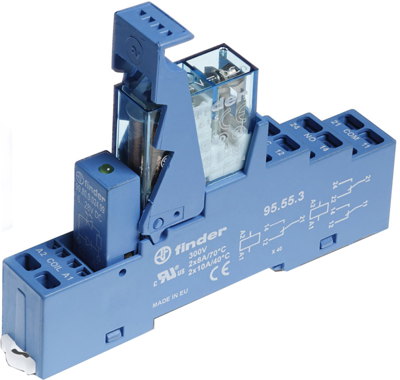

Coupling relay, 49.72.7.024.0050, Finder
Coupling relay for DIN-rail with tension spring terminals 2 change-over contacts 8 A / 250 V AC coil voltage 24 V DC contact material AgNi, with integrated LED and EMC interference suppression
Features
- Ideal interface for PLC and electronic systems
- AC coils & DC coils
- Instant ejection of relay using plastic retaining clip
- Supply status indication and coil suppression module
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Status display | LED, green | |
| Coil voltage (DC) | 24 V | |
| Connection | spring-clamp connection | |
| Degree of protection (IP) | IP20 | |
| Rated voltage (AC) | 250 V | |
| Contact material | AgNi | |
| Product type | coupling relay | |
| Contact type | 2 Form C (NO/NC) | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
