49.62.9.024.0050 | Finder
Coupling relay 2 Form C (NO/NC), 24 V (DC), 10 A, 250 V (AC), 49.62.9.024.0050
Not suitable for new designs
Unit Price (€ / pc.)
20.7536 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
20.75 € *
Price list
Quantity
Price per unit*
1 pcs.
20.7536 €
5 pcs.
19.8492 €
10 pcs.
18.7663 €
20 pcs.
17.7905 €
*incl. VAT plus shipping costs
Subject to prior sale

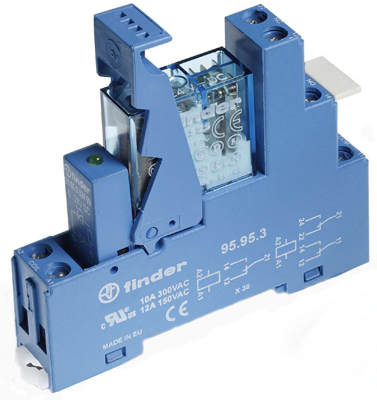

Coupling relay, 49.62.9.024.0050, Finder
Coupling relay for DIN rail with screw terminals, 2 changeover contacts 10 A / 250 V AC coil voltage 24 V DC, contact material AgNi, with integrated LED and EMC suppression, dielectric strength between contacts 2.5 kV
Features
- Ideal interface for PLC and electronic systems
- AC coils & DC coils
- Instant ejection of relay using plastic retaining clip
- Supply status indication and coil suppression module
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Status display | LED, green | |
| Coil voltage (DC) | 24 V | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Rated voltage (AC) | 250 V | |
| Contact material | AgNi | |
| Product type | coupling relay | |
| Contact type | 2 Form C (NO/NC) | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
