49.61.8.230.0060 | Finder
Coupling relay 1 Form C (NO/NC), 230 V (AC), 28000 Ω, 16 A, 250 V (AC), 49.61.8.230.0060
Not suitable for new designs - Last time buy manufacturer: 06.30.2024
Unit Price (€ / pc.)
18.6592 € *
Available: 1 pcs.
Coupling relay, 49.61.8.230.0060, Finder

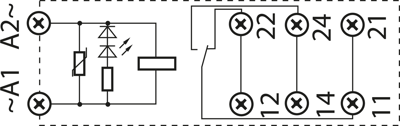

Coupling relay for DIN rail with screw terminals, 1 changeover contact 16 A / 250 V DC coil voltage 230 V AC. Contact material AgCdO, with integrated LED and EMC suppression.
Features
- Ideal interface for PLC and electronic systems
- AC coils & DC coils
- Instant ejection of relay using plastic retaining clip
- Supply status indication and coil suppression module
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | coupling relay | |
| Contact type | 1 Form C (NO/NC) | |
| Rated current | 16 A | |
| Coil voltage (AC) | 230 V | |
| Rated voltage (AC) | 250 V | |
| Coil resistance | 28000 Ω | |
| Connection | screw connection | |
| Contact material | AgCdO | |
| Degree of protection (IP) | IP40 | |
| Status display | LED, green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Cadmium oxide |
| SVHC free | No |
| RoHS conform | Yes |
