49.52.7.024.0050 | Finder

Coupling relay 2 Form C (NO/NC), 24 V (DC), 1200 Ω, 8 A, 250 V (AC), 49.52.7.024.0050

Order No.: 29G9748

EAN: 8012823118000

MPN:

49.52.7.024.0050

495270240050

Series: 49

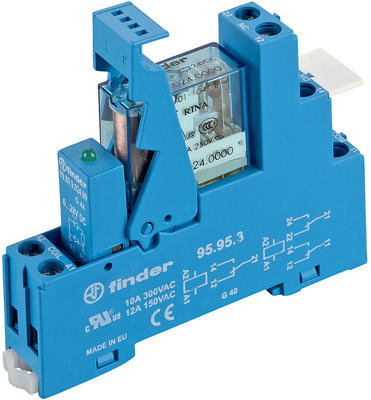

Image may differ

Key Specification:

Product type coupling relay

Contact type 2 Form C (NO/NC)

Rated current 8 A

Coil voltage (DC) 24 V

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Coupling relay 2 Form C (NO/NC), 24 V (DC), 8 A, 30 V (DC), 250 V (AC), 48.52.7.024.0050

Order No.: 34G2186

Manufacturer: Finder

per pc. 19.5398 € *

Go to product

*incl. VAT plus shipping costs

Description

Coupling relay, 49.52.7.024.0050, Finder

Coupling relay for DIN-rail with screw terminals 2 CO contact 8 A / 250 V AC coil voltage 24 V DC contact material AgNi, with integrated LED and EMC suppression

Features

Ideal interface for PLC and electronic systems
AC coils & DC coils
Instant ejection of relay using plastic retaining clip
Supply status indication and coil suppression module

Technical specifications

Filter	Property	Value
	Connection	screw connection
	Rated voltage (AC)	250 V
	Contact type	2 Form C (NO/NC)
	Coil voltage (DC)	24 V
	Degree of protection (IP)	IP40
	Contact material	AgNi
	Coil resistance	1200 Ω
	Product type	coupling relay
	Rated current	8 A
	Status display	LED, green
