49.31.7.024.5050 | Finder
Coupling relay 1 Form C (NO/NC), 24 V (DC), 1200 Ω, 10 A, 250 V (AC), 49.31.7.024.5050
Not suitable for new designs - NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
18.2427 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
18.24 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2427 €
5 pcs.
17.7786 €
10 pcs.
17.3264 €
*incl. VAT plus shipping costs
Subject to prior sale

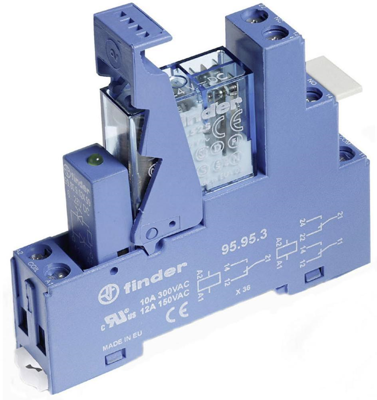

Coupling relay, 49.31.7.024.5050, Finder

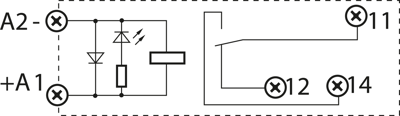

Coupling relay for DIN-rail with screw terminals 1 CO contact 10 A / 250 V AC coil voltage 24 V DC contact material AgNi-hard gold plated, with integrated LED and EMC suppression
Features
- Ideal interface for PLC and electronic systems
- AC coils & DC coils
- Instant ejection of relay using plastic retaining clip
- Supply status indication and coil suppression module
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | coupling relay | |
| Contact type | 1 Form C (NO/NC) | |
| Rated current | 10 A | |
| Coil voltage (DC) | 24 V | |
| Rated voltage (AC) | 250 V | |
| Coil resistance | 1200 Ω | |
| Connection | screw connection | |
| Contact material | AgNi, gold-plated | |
| Degree of protection (IP) | IP40 | |
| Status display | LED, green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
