48.P8.7.024.0050 | Finder
Coupling relay 2 Form C (NO/NC), 24 V (DC), 10 A, 250 V (AC), 48.P8.7.024.0050
Order No.: 34G1376
EAN: 8012823402468
MPN:
48.P8.7.024.0050
48P870240050
Unit Price (€ / pc.)
19.9682 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
19.97 € *
Price list
Quantity
Price per unit*
1 pcs.
19.9682 €
3 pcs.
19.0995 €
5 pcs.
18.0642 €
10 pcs.
17.1241 €
*incl. VAT plus shipping costs
Subject to prior sale

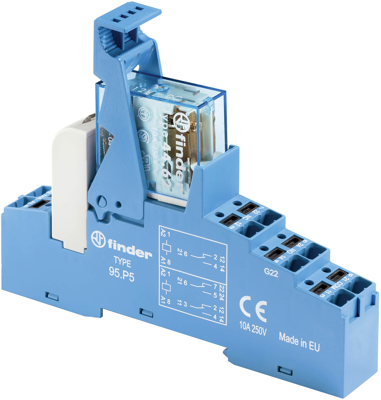

Relay interface module, 48.P8.7.024.0050, Finder
2 CO relay interface modules, 15.8 mm wide, Ideal interface for PLC and electronic systems.
Features
- Push-in terminals
- Supply status indication and EMC coil suppression module as standard
- Identification label
- Cadmium-free contact material
Technical specifications
| Connection | push-in clamp | |
| Rated current | 10 A | |
| Contact material | AgNi | |
| Coil voltage (DC) | 24 V | |
| Degree of protection (IP) | IP20 | |
| Contact type | 2 Form C (NO/NC) | |
| Product type | coupling relay | |
| Rated voltage (AC) | 250 V |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
