48.P5.7.024.0050 | Finder
Coupling relay 2 Form C (NO/NC), 24 V (DC), 8 A, 30 V (DC), 250 V (AC), 48.P5.7.024.0050
Unit Price (€ / pc.)
37.4374 € *
Available: 144 pcs.
Total Price:
37.44 € *
Price list
Quantity
Price per unit*
1 pcs.
37.4374 €
5 pcs.
35.9380 €
10 pcs.
34.5576 €
*incl. VAT plus shipping costs
Subject to prior sale

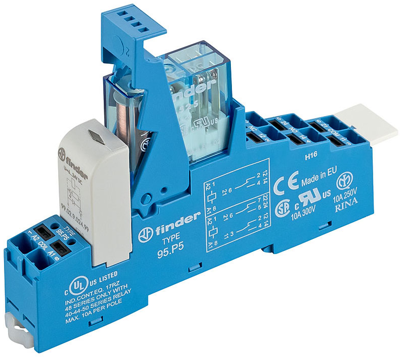

Coupling relay, 48.P5.7.024.0050, Finder
Coupling relay for DIN rail with push-in connections, 2 change-over contacts for 8 A / 250 V AC, coil voltage 24 V DC, contact material AgNi, with integrated LED and EMC suppression.
Features
- DC sensitive coils
- Relay with forcibly guided contacts according to EN 50205 Type B
- 35 mm rail (EN 60715) mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | push-in clamp | |
| Coil voltage (DC) | 24 V | |
| Contact material | AgNi | |
| Degree of protection (IP) | IP20 | |
| Product type | coupling relay | |
| Rated current | 8 A | |
| Rated voltage (AC) | 250 V | |
| Rated voltage (DC) | 30 V | |
| Status display | LED, green | |
| Contact type | 2 Form C (NO/NC) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
