48.52.9.024.0050 | Finder
Coupling relay 2 Form C (NO/NC), 24 V (DC), 8 A, 250 V (AC), 48.52.9.024.0050
Unit Price (€ / pc.)
17.6596 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.66 € *
Price list
Quantity
Price per unit*
1 pcs.
17.6596 €
5 pcs.
16.8742 €
10 pcs.
16.1483 €
20 pcs.
15.2796 €
*incl. VAT plus shipping costs
Subject to prior sale

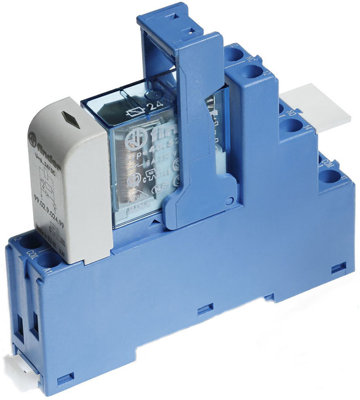

Coupling relay, 48.52.9.024.0050, Finder
Coupling relay for DIN rail with screw terminals, 2 CO contact 8 A / 250 V AC coil voltage 24 V DC contact material AgNi, with integrated LED and EMC suppression.
Features
- DC sensitive coils
- Relay with forcibly guided contacts according to EN 50205 Type B
- 35 mm rail (EN 60715) mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | coupling relay | |
| Status display | LED, green | |
| Coil voltage (DC) | 24 V | |
| Contact material | AgNi | |
| Rated current | 8 A | |
| Rated voltage (AC) | 250 V | |
| Contact type | 2 Form C (NO/NC) | |
| Degree of protection (IP) | IP20 | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
