39.71.0.024.5060 | Finder

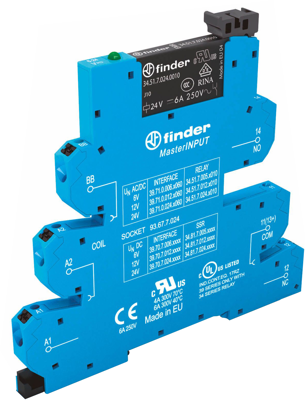

Relay interface module, 39.71.0.024.5060, Finder

MasterINPUT EMR interface with 1 Pole interface module, 6.2 mm wide. Push-in terminals. Allows the full termination of input device to the interface without the need for additional terminals - saving component cost, time and panel space. Quick and easy distribution of supply voltage through the jumper link on the Busbar (BB) connection. Ideal for interface applications between the auxiliary contacts, sensors, limit switches and Controllers or PLC’s.

Features

• Jumper link option for the quick and easy distribution of supply voltage to proximity switches and similar input devices (Bus-bar connection BB)
• Gold plated output contact as standard, for better compatibility with low energy PLC inputs
• UL Listing (certain relay/socket combinations)

Applications

• Packaging machines
• Bottling plant
• Traffic light controls
• Carousel warehouses
• Control panels
• Panels for electrical distribution
• Labelling machines
• Hoists and cranes
