39.70.7.024.9024 | Finder
Coupling relay 1 Form A (N/O), 24 V (DC), 6 A, 24 V (DC), 39.70.7.024.9024
Order No.: 34G2345
EAN: 8012823390284
MPN:
39.70.7.024.9024
397070249024
Unit Price (€ / pc.)
33.2962 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
33.30 € *
Price list
Quantity
Price per unit*
1 pcs.
33.2962 €
5 pcs.
31.8563 €
10 pcs.
30.1070 €
20 pcs.
28.5481 €
*incl. VAT plus shipping costs
Subject to prior sale

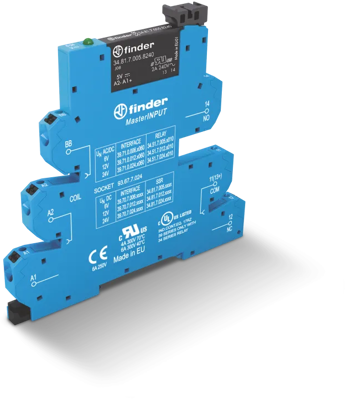

Relay interface module, 39.70.7.024.9024, Finder
MasterINPUT SSR interface module with Push-in terminals, provides a terminal for all 2 (or 3) wires associated with input contacts, sensors or proximity switches. This negates any need for additional points of termination - saving on added terminal cost, time and panel space. The input device +ve terminal (BB) (and -ve [A2] if needed) of each adjacent module are easily and quickly “commoned” using jumper link(s). The module is ideal for interface applications between auxiliary contacts, sensors, limit switches and Controllers or PLC’s.
Features
- Jumper link option for the quick and easy distribution of supply voltage to proximity switches and similar input devices (Bus-bar connection BB)
- UL Listing (certain relay/socket combinations)
- Push-in terminals
Applications
- Packaging machines
- Bottling plant
- Traffic light controls
- Carousel warehouses
- Control panels
- Panels for electrical distribution
- Labelling machines
- Hoists and cranes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Connection | push-in clamp | |
| Contact type | 1 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Product type | coupling relay | |
| Rated voltage (DC) | 24 V | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
