39.61.0.060.0060 | Finder
Coupling relay 1 Form C (NO/NC), 60 V (DC), 60 V (AC), 6 A, 250 V (AC), 39.61.0.060.0060
Order No.: 34G1153
EAN: 8012823390529
MPN:
39.61.0.060.0060
396100600060
Unit Price (€ / pc.)
22.1697 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
22.17 € *
Price list
Quantity
Price per unit*
1 pcs.
22.1697 €
3 pcs.
21.2058 €
5 pcs.
20.0396 €
10 pcs.
19.0043 €
*incl. VAT plus shipping costs
Subject to prior sale

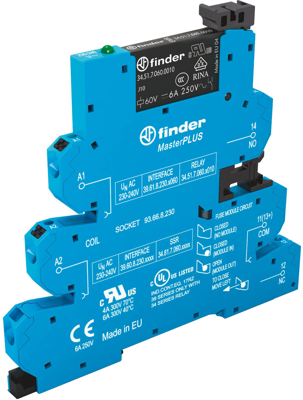

Relay interface module, 39.61.0.060.0060, Finder
MasterPLUS Electromechanical relay interface module with Push-in terminals offers added protection for the output circuit thanks to the replaceable fuse module. This product is for general interface use in any type of system and application. It can be used for input interface applications between auxiliary contacts, sensors etc. and controllers, PLC’s or motor contactors. Or, for output interface between PLC’s controllers and relays, solenoids, etc.
Applications
- Packaging machines
- Bottling plant
- Traffic light controls
- Carousel warehouses
- Control panels
- Panels for electrical distribution
- Labelling machines
- Hoists and cranes
Technical specifications
| Coil voltage (AC) | 60 V | |
| Connection | push-in clamp | |
| Rated current | 6 A | |
| Contact material | AgNi | |
| Coil voltage (DC) | 60 V | |
| Degree of protection (IP) | IP20 | |
| Contact type | 1 Form C (NO/NC) | |
| Product type | coupling relay | |
| Rated voltage (AC) | 250 V |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
