39.60.0.024.9024 | Finder
Coupling relay 1 Form A (N/O), 24 V (DC), 24 V (AC), 6 A, 24 V (DC), 39.60.0.024.9024
Order No.: 34G1494
EAN: 8012823390628
MPN:
39.60.0.024.9024
396000249024
Unit Price (€ / pc.)
34.8075 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
34.81 € *
Price list
Quantity
Price per unit*
1 pcs.
34.8075 €
3 pcs.
33.2962 €
5 pcs.
31.4755 €
10 pcs.
29.8333 €
*incl. VAT plus shipping costs
Subject to prior sale

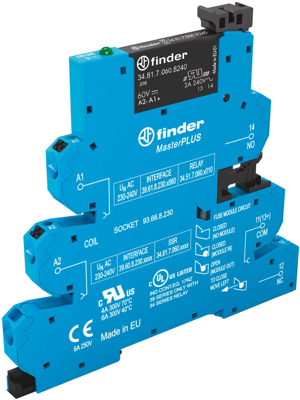

Relay interface module, 39.60.0.024.9024, Finder
MasterPLUS SSR interface module with Push-in terminals offers added protection for the output circuit thanks to the replaceable fuse module. This product is for general interface use in any type of system and application. It can be used for input interface applications between auxiliary contacts, sensors etc. and controllers, PLC’s or motor contactors. Or, for output interface between PLC’s controllers and relays, solenoids, etc
Features
- Common connection possible with optional jumper links (terminals A1, A2 and 13+)
- UL Listing (certain relay/socket combinations)
Applications
- Packaging machines
- Bottling plant
- Traffic light controls
- Carousel warehouses
- Control panels
- Panels for electrical distribution
- Labelling machines
- Hoists and cranes
Technical specifications
| Coil voltage (AC) | 24 V | |
| Rated voltage (DC) | 24 V | |
| Connection | push-in clamp | |
| Rated current | 6 A | |
| Coil voltage (DC) | 24 V | |
| Degree of protection (IP) | IP20 | |
| Contact type | 1 Form A (N/O) | |
| Product type | coupling relay |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
