39.51.0.024.0060 | Finder
Coupling relay 1 Form A (N/O), 24 V (DC), 24 V (AC), 6 A, 250 V (AC), 39.51.0.024.0060
Order No.: 34G1147
EAN: 8012823390130
MPN:
39.51.0.024.0060
395100240060
Unit Price (€ / pc.)
17.2550 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.26 € *
Price list
Quantity
Price per unit*
1 pcs.
17.2550 €
5 pcs.
16.4815 €
10 pcs.
15.7794 €
20 pcs.
14.9226 €
*incl. VAT plus shipping costs
Subject to prior sale

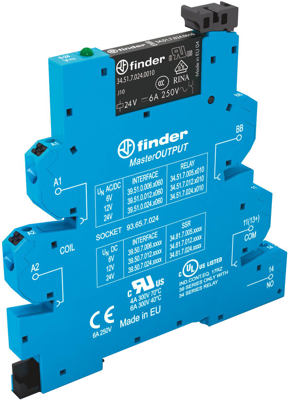

Relay interface module, 39.51.0.024.0060, Finder
MasterOUTPUT Electromechanical relay interface module with Push-in terminals provides a terminal for both the switched wire and the return wire to each output device. This negates any need for additional points of termination - saving on added terminal cost, time and panel space. The output device return terminal of each adjacent module is easily and quickly “commoned” using Busbar jumper link(s). The module is ideal for interface applications between the PLC’s or Controllers and output devices such as electromagnetic valves or motor contactors etc..
Applications
- Packaging machines
- Bottling plant
- Traffic light controls
- Carousel warehouses
- Control panels
- Panels for electrical distribution
- Labelling machines
- Hoists and cranes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Rated current | 6 A | |
| Degree of protection (IP) | IP20 | |
| Rated voltage (AC) | 250 V | |
| Coil voltage (AC) | 24 V | |
| Connection | push-in clamp | |
| Contact type | 1 Form A (N/O) | |
| Contact material | AgNi | |
| Product type | coupling relay |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
