39.50.8.230.9024 | Finder
Coupling relay 1 Form A (N/O), 230 V (AC), 6 A, 24 V (DC), 39.50.8.230.9024
Order No.: 34G2337
EAN: 8012823390222
MPN:
39.50.8.230.9024
395082309024
Unit Price (€ / pc.)
35.5691 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
35.57 € *
Price list
Quantity
Price per unit*
1 pcs.
35.5691 €
5 pcs.
34.0221 €
10 pcs.
32.1657 €
20 pcs.
30.4878 €
*incl. VAT plus shipping costs
Subject to prior sale

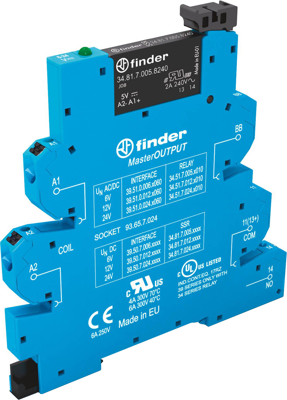

Relay interface module, 39.50.8.230.9024, Finder
MasterOUTPUT SSR interface module provides a terminal for both the switched wire and the return wire to each output device. This negates any need for additional points of termination - saving on added terminal cost, time and panel space. The output device return terminal of each adjacent module is easily and quickly “commoned” using Busbar jumper link(s). The module is ideal for interface applications between the PLC’s or Controllers and output devices such as electromagnetic valves or motor contactors etc.
Features
- UL Listing (certain relay/socket combinations)
- 6.2 mm wide
- Push-In terminals
Applications
- Packaging machines
- Bottling plant
- Traffic light controls
- Carousel warehouses
- Control panels
- Panels for electrical distribution
- Labelling machines
- Hoists and cranes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | AgNi | |
| Degree of protection (IP) | IP20 | |
| Contact type | 1 Form A (N/O) | |
| Rated current | 6 A | |
| Connection | push-in clamp | |
| Rated voltage (DC) | 24 V | |
| Coil voltage (AC) | 230 V | |
| Product type | coupling relay |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
