39.11.0.024.0060 | Finder
Coupling relay 1 Form C (NO/NC), 24 V (DC), 24 V (AC), 6 A, 39.11.0.024.0060
Unit Price (€ / pc.)
15.6128 € *
Standard delivery time from the manufacturer is: 1 Week

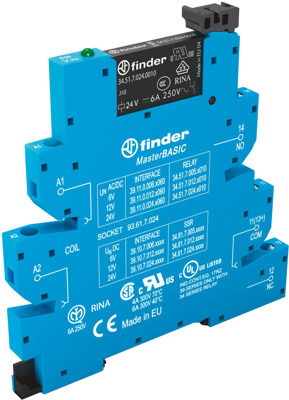

Torque relay, 39.11.0.024.0060, Finder
MasterBasic slim Torque relay for DIN-rail, with screw terminals, modular design, 1 CO contact for 6 A contact material AgNi, universally applicable as Torque relay in the input to the PLC or in the output of the PLC to control actuators, LED display, terminals A1 or A2 and 11 are bridgeable, coil voltage 24 V AC/DC
Technical specifications
| Connection | screw connection | |
| Coil voltage (DC) | 24 V | |
| Contact material | AgNi | |
| Coil voltage (AC) | 24 V | |
| Degree of protection (IP) | IP20 | |
| Product type | coupling relay | |
| Rated current | 6 A | |
| Status display | LED | |
| Contact type | 1 Form C (NO/NC) |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
