38.61.7.024.0050 | Finder
Coupling relay 1 Form C (NO/NC), 24 V (DC), 6 A, 38.61.7.024.0050
Unit Price (€ / pc.)
18.4450 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
18.45 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4450 €
5 pcs.
17.6477 €
10 pcs.
16.6719 €
20 pcs.
15.8151 €
*incl. VAT plus shipping costs
Subject to prior sale

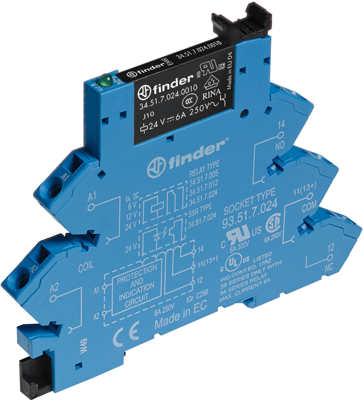

Torque relay, 38.61.7.024.0050, Finder
Torque relay for DIN rail with tension spring terminals 1 change-over contact 6 A / 250 V AC coil voltage 24 V DC, contact material AgNi, LED and EMC suppression are integrated in the socket.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | AgNi | |
| Coil voltage (DC) | 24 V | |
| Connection | spring-clamp connection | |
| Contact type | 1 Form C (NO/NC) | |
| Degree of protection (IP) | IP20 | |
| Product type | coupling relay | |
| Status display | LED | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
