38.52.0.024.0060 | Finder
Coupling relay 2 Form C (NO/NC), 24 V (DC), 24 V (AC), 8 A, 250 V (AC), 38.52.0.024.0060
Order No.: 34G1341
EAN: 8012823310404
MPN:
38.52.0.024.0060
385200240060
Unit Price (€ / pc.)
27.6913 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
27.69 € *
Price list
Quantity
Price per unit*
1 pcs.
27.6913 €
3 pcs.
26.4894 €
5 pcs.
25.0376 €
10 pcs.
23.7405 €
*incl. VAT plus shipping costs
Subject to prior sale

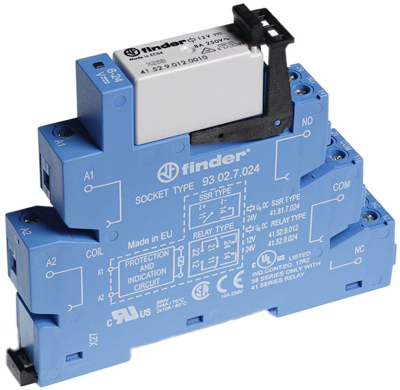

Relay interface module, 38.52.0.024.0060, Finder
Relay Interface Modules with screw terminals, (EMR) electromechanical relay, 2 CO 8 A, width 14 mm. Designed for interfacing with PLC systems.
Features
- Integral coil indication and protection circuit
- Removal of the relay through the plastic retaining and release clip
Applications
- Bottling plant
- Packaging machines
- Control panels
- Traffic light controls
- Vending machines
- Programmable controllers
- Panels for electrical distribution
- Labelling machines
Technical specifications
| Coil voltage (AC) | 24 V | |
| Connection | screw connection | |
| Rated current | 8 A | |
| Contact material | AgNi | |
| Coil voltage (DC) | 24 V | |
| Degree of protection (IP) | IP20 | |
| Contact type | 2 Form C (NO/NC) | |
| Product type | coupling relay | |
| Rated voltage (AC) | 250 V |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
