38.51.7.060.5050 | Finder
Coupling relay 1 Form C (NO/NC), 60 V (DC), 6 A, 250 V (AC), 38.51.7.060.5050
Order No.: 34G2625
EAN: 8012823238609
MPN:
38.51.7.060.5050
385170605050
Unit Price (€ / pc.)
24.6330 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
24.63 € *
Price list
Quantity
Price per unit*
1 pcs.
24.6330 €
5 pcs.
23.5620 €
10 pcs.
22.2649 €
20 pcs.
21.1106 €
*incl. VAT plus shipping costs
Subject to prior sale

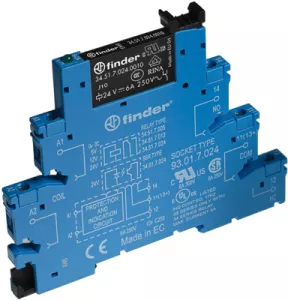

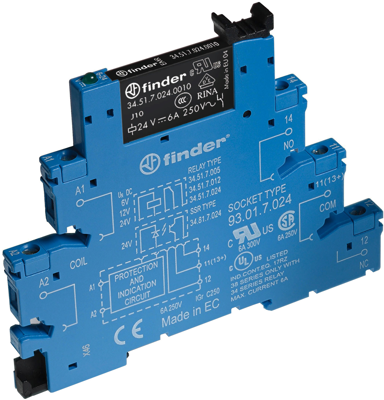

Relay interface module, 38.51.7.060.5050, Finder
Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
Features
- Integral coil indication and protection circuit
- Removal of the relay through the plastic retaining and release clip
- UL Listing (relay/socket/jumper link)
Applications
- Bottling plant
- Packaging machines
- Control panels
- Panels for electrical distribution
- Traffic light controls
- Vending machines
- Programmable controllers
- Labelling machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Rated voltage (AC) | 250 V | |
| LED display | Yes | |
| Contact type | 1 Form C (NO/NC) | |
| Coil voltage (DC) | 60 V | |
| Degree of protection (IP) | IP20 | |
| Contact material | AgNi + Au | |
| Product type | coupling relay | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
