38.51.7.024.4050 | Finder
Coupling relay 1 Form C (NO/NC), 24 V (DC), 6 A, 250 V (AC), 38.51.7.024.4050
Order No.: 34G1337
EAN: 8012823281124
MPN:
38.51.7.024.4050
385170244050
Unit Price (€ / pc.)
18.4450 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
18.45 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4450 €
5 pcs.
17.6239 €
10 pcs.
16.8623 €
20 pcs.
15.9579 €
*incl. VAT plus shipping costs
Subject to prior sale

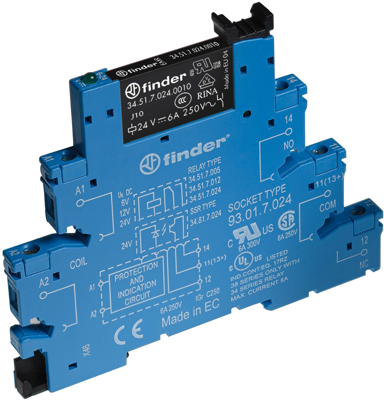

Relay interface module, 38.51.7.024.4050, Finder
Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
Features
- Integral coil indication and protection circuit
- Removal of the relay through the plastic retaining and release clip
Applications
- Bottling plant
- Packaging machines
- Control panels
- Traffic light controls
- Vending machines
- Programmable controllers
- Panels for electrical distribution
- Labelling machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Rated current | 6 A | |
| Degree of protection (IP) | IP20 | |
| Rated voltage (AC) | 250 V | |
| Connection | screw connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgSnO2 | |
| Product type | coupling relay |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
