38.51.7.006.0050 | Finder
Coupling relay 1 Form C (NO/NC), 6 V (DC), 6 A, 250 V (AC), 38.51.7.006.0050
Order No.: 34G1334
EAN: 8012823195902
MPN:
38.51.7.006.0050
385170060050
Unit Price (€ / pc.)
19.5041 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
19.50 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5041 €
3 pcs.
18.6592 €
5 pcs.
17.6358 €
10 pcs.
16.7195 €
*incl. VAT plus shipping costs
Subject to prior sale

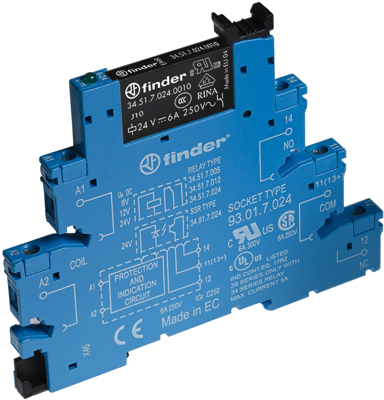

Relay interface module, 38.51.7.006.0050, Finder
Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
Features
- Integral coil indication and protection circuit
- Removal of the relay through the plastic retaining and release clip
Applications
- Bottling plant
- Packaging machines
- Control panels
- Traffic light controls
- Vending machines
- Programmable controllers
- Panels for electrical distribution
- Labelling machines
Technical specifications
| Connection | screw connection | |
| Rated current | 6 A | |
| Contact material | AgNi | |
| Coil voltage (DC) | 6 V | |
| Degree of protection (IP) | IP20 | |
| Contact type | 1 Form C (NO/NC) | |
| Product type | coupling relay | |
| Rated voltage (AC) | 250 V |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
