38.51.0.060.5060 | Finder
Coupling relay 1 Form C (NO/NC), 60 V (DC), 60 V (AC), 6 A, 250 V (AC), 38.51.0.060.5060
Order No.: 34G2635
EAN: 8012823217376
MPN:
38.51.0.060.5060
385100605060
Unit Price (€ / pc.)
25.6802 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
25.68 € *
Price list
Quantity
Price per unit*
1 pcs.
25.6802 €
5 pcs.
24.5616 €
10 pcs.
23.2169 €
20 pcs.
22.0031 €
*incl. VAT plus shipping costs
Subject to prior sale

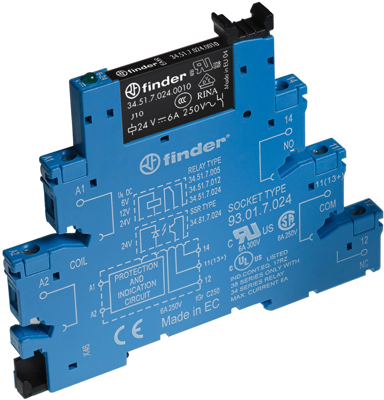

Relay interface module, 38.51.0.060.5060, Finder
Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
Features
- Integral coil indication and protection circuit
- Removal of the relay through the plastic retaining and release clip
- UL Listing (relay/socket/jumper link)
Applications
- Bottling plant
- Packaging machines
- Control panels
- Panels for electrical distribution
- Traffic light controls
- Vending machines
- Programmable controllers
- Labelling machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 60 V | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Rated voltage (AC) | 250 V | |
| Contact material | AgNi + Au | |
| Coil voltage (AC) | 60 V | |
| LED display | Yes | |
| Product type | coupling relay | |
| Contact type | 1 Form C (NO/NC) | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
