38.51.0.012.0060 | Finder
Coupling relay 1 Form C (NO/NC), 12 V (DC), 12 V (AC), 6 A, 250 V (AC), 38.51.0.012.0060
Order No.: 34G1310
EAN: 8012823186597
MPN:
38.51.0.012.0060
385100120060
Unit Price (€ / pc.)
18.3498 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
18.35 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3498 €
5 pcs.
17.5525 €
10 pcs.
16.6005 €
20 pcs.
15.7318 €
*incl. VAT plus shipping costs
Subject to prior sale

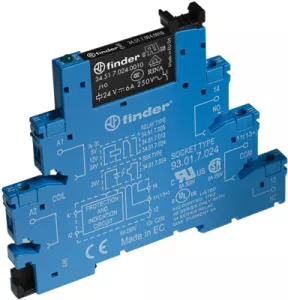

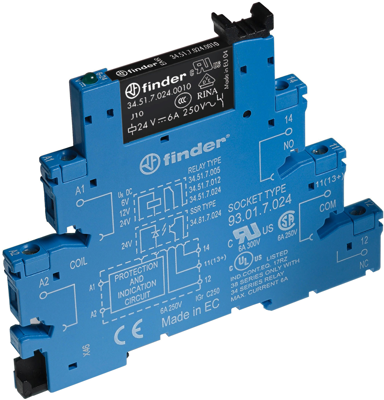

Relay interface module, 38.51.0.012.0060, Finder
Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
Features
- Integral coil indication and protection circuit
- Removal of the relay through the plastic retaining and release clip
Applications
- Bottling plant
- Packaging machines
- Control panels
- Traffic light controls
- Vending machines
- Programmable controllers
- Panels for electrical distribution
- Labelling machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 12 V | |
| Rated current | 6 A | |
| Degree of protection (IP) | IP20 | |
| Rated voltage (AC) | 250 V | |
| Coil voltage (AC) | 12 V | |
| Connection | screw connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi | |
| Product type | coupling relay |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
