22.34.0.230.4340 | Finder

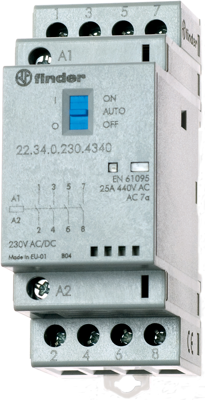

Contactor, 25 A, 1 Form A (N/O) + 2 Form B (N/C), coil 250 VAC, screw connection, 22.34.0.230.4340
Unit Price (€ / pc.)
47.1121 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
47.11 € *
Price list
Quantity
Price per unit*
1 pcs.
47.1121 €
5 pcs.
44.2918 €
15 pcs.
42.5901 €
50 pcs.
40.7099 €
150 pcs.
38.9963 €
*incl. VAT plus shipping costs
Subject to prior sale
Installation contactor for 35 mm rail, 4 NO contacts for 25 A / 250 V AC, contact material: AgSnO2, max. Switching capacities at 230 V AC: AC1 6250 VA, AC15 1800 VA, 3-phase motor load, AC3 (400-440 V AC) 4 kW, rated current AC AC-7c 10 A, incandescent and halogen lamps 2000 W, compact fluorescent lamp (energy-saving lamp) 200 W, fluorescent lamp with ECG 800 W, fluorescent lamp with CCG 500 W, LED (230 V AC) 200 W, LV halogen lamps or LED with ECG 200 W, LV halogen lamps or LED with CCG 800 W. Coil: 230 V AC/DC, width 35 mm, with auto on/off switch, LED and mechanical switch position indicator, relay protection type: IP 20
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 25 A | |
| Assembly | DIN rail | |
| Latching switching function | 1 Form A (N/O) + 2 Form B (N/C) | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 250 VAC | |
| Version | contactor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
