Bundle voltage supply module, 00K.165, Finder

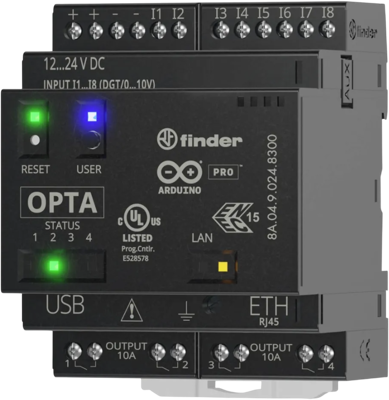

Bundle consisting of power supply 78.12.1.230.2400+OPTA LITE 8A.04.9.024.8300. A series of simple and stand-alone PROGRA mmABLE LOGIC RELAYS ideal for simple applications in industrial automation, OEM and building automation IoT. Progra mmable with conventional progra mming languages (ladder logic) as well as with innovative open source progra mming languages (IDE / ARDUINO), the powerful dual-core Cortex M7+M4 chip enables a high number of computing operations in real time. S781212302400 DIN rail switching power supply, input 110-240 V AC or 220 V DC, at AC voltage the power supply switches at zero crossing, output 12 W at 24 V DC, rated output current 0.5 A, internal thermal protection, short-circuit protection at the output, width 17.5 mm, for 35 mm mounting rail (EN 60715) Thanks to a high-end integrated secure element chip, you can manage encryption and data keys in all types of applications. OPTA LITE type 8A.04.9.024.8300/ Supply voltage 12-24 V DC/ 8 digital/analog (0-10 V) inputs/ 4 relay outputs 10A/ USB-C high-speed connection for progra mming and power supply data acquisition (via storage medium)/ RJ45 Ethernet or Modbus TCP/IP connection.
