7T.81.0.000.2303 | Finder
Thermostat, Form A (N/O) 0-60 °C, (L x W x H) 88.8 x 17.5 x 47.8 mm, 7T.81.0.000.2303
Unit Price (€ / pc.)
22.9432 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
22.94 € *
Price list
Quantity
Price per unit*
1 pcs.
22.9432 €
5 pcs.
21.5747 €
15 pcs.
20.7536 €
50 pcs.
19.8254 €
150 pcs.
19.0043 €
*incl. VAT plus shipping costs
Subject to prior sale

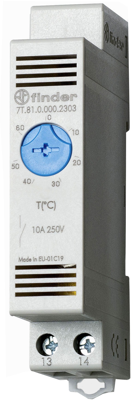

Thermostat, 7T.81.0.000.2303, Finder
Thermostat for installation in the control cabinet, DIN rail mounted device, 17.5 mm wide, with variable switching threshold from 0 to 60 degrees. 1 NO contact for 10 A, maximum inrush current 20 A for 10 seconds. Contact material AgNi, bimetallic snap-action contact, blue adjustment knob.
Features
- Small design (17.5 mm wide)
- Bimetal Jump Contact
- Wide adjustment range
- Long electrical life
- For mounting rail DIN EN 60715 TH35

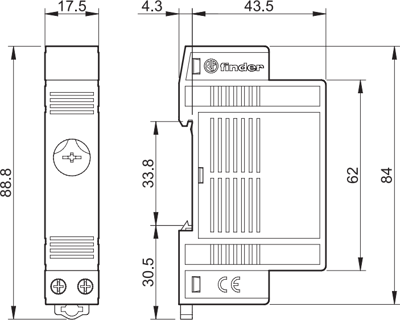

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of mounting | screw | |
| Length | 88.8 mm | |
| Product type | thermostat | |
| Height | 47.8 mm | |
| Width | 17.5 mm | |
| Degree of protection (IP) | IP20 | |
| Version | Form A (N/O) 0-60 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 90321020 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
