VIIG-H05RRF3G100-C15M/2,50M SW9005 | FELLER

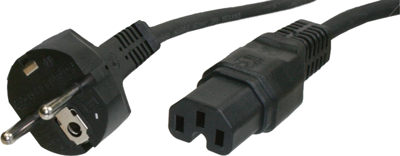

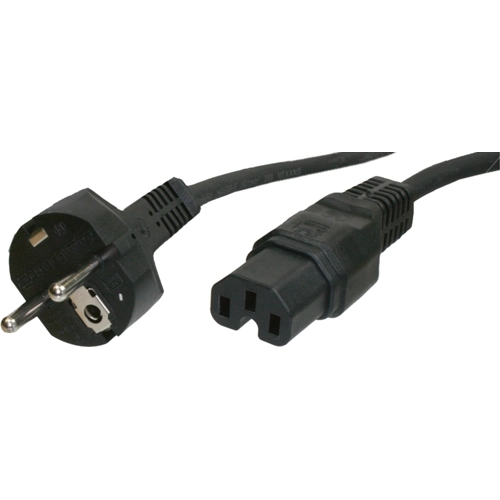

Power cord, Europe, Plug Type E + F, straight on C15-connector, straight, H05RR-F3G1.0mm², black, 2.5 m
Active
Total price
(
11.4002 €
* / pcs.)
11.40 €
Available: 254 pcs.
Quantity
Price per unit*
1 pcs.
11.4002 €
10 pcs.
10.5553 €
50 pcs.
9.6866 €
100 pcs.
9.1273 €
250 pcs.
8.5561 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by FELLER at Bürklin Elektronik
Appliance power cables, type Feller VIIG/C15.
With ground contact and double insulation; Cord: straight Schuko-style CEE (7) VII plug to straight hot cord connector to EN 60320/C15. Cable type: H05RR-F3G1.0 mm². Rated voltage: 250 VAC. Rated current: 10 A.
Type: black, 2.5 m
Technical specifications
| Connection (1) | Plug Type E + F, straight | |
| Connection (2) | C15-connector, straight | |
| Version | Power cord | |
| Colour | black | |
| Cable type | H05RR-F3G1.0mm² | |
| Cable length | 2.5 m | |
| Country code | Europe | |
| Cable cross-section | 1.0 mm² | |
| Rated current | 10 A | |
| Standard connection 1 | CEE (7) VII | |
| Standard connection 2 | IEC 60320 |
Logistics
| Country of origin | AT |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
