VII-H05VVF3G075-C13/0,50M SW9005 | FELLER
Device connection cable, Europe, plug type E + F, angled on C13 socket, straight, H05VV-F3G0.75 mm², black, 500 mm, VII-H05VVF3G075-C13/0,50M SW9005
Order No.: 88F301
EAN: 4099891096823
MPN:
VII-H05VVF3G075-C13/0,50M SW9005
Unit Price (€ / pc.)
6.3665 € *
Available: 563 pcs.
Total Price:
6.37 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3665 €
10 pcs.
5.7596 €
100 pcs.
5.1527 €
500 pcs.
4.8433 €
1000 pcs.
4.3911 €
*incl. VAT plus shipping costs
Subject to prior sale

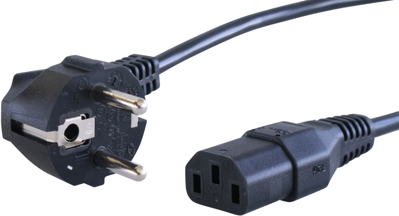

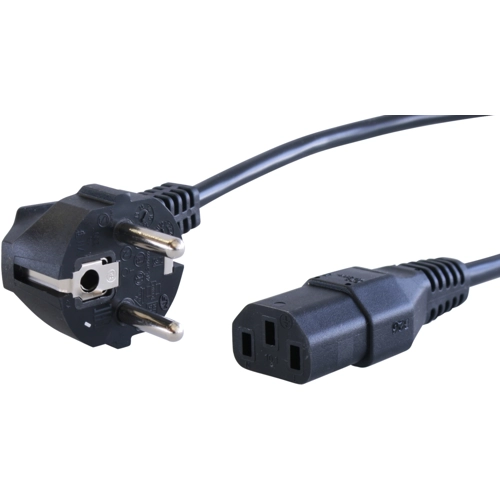

Appliance power cables, type Feller VII/C13.
With ground contact and double insulation. Angled Schuko-style plug to CEE (7) VII, opposing end straight IEC cord connector to EN 60320/C13; Cable type: H05VV-F3G0.75 or 1.0 mm². Rated voltage: 250 VAC. Rated current: 10 A.
Conductor cross-section 0.75 mm².
Type: black, 0.5 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Country code | Europe | |
| Standard connection 1 | CEE (7) VII | |
| Version | power cord | |
| Cable cross-section | 0.75 mm² | |
| Connection (2) | C13 socket, straight | |
| Cable length | 500 mm | |
| Standard connection 2 | IEC 60320 | |
| Connection (1) | plug type E + F, angled | |
| Cable type | H05VV-F3G0.75 mm² | |
| Colour | black | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
