554081053010 | Felder

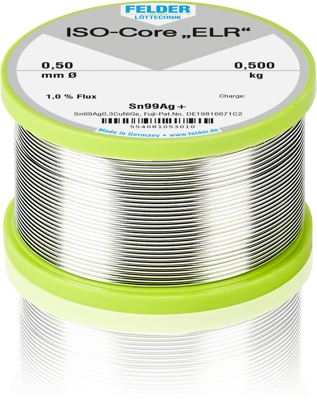

Solder, lead-free, Sn99Ag0.3Cu0.7NiGe, Ø 0.5 mm, 500 g, 554081053010
Order No.: 11L2682
EAN: 4005796551008
MPN:
554081053010
ISO-Core ELR Sn99Ag+ 0,5MM 500G
Series: ISO-Core ELR Sn99Ag+
Unit Price (€ / pck.)
82.2528 € *
Standard delivery time from the manufacturer is: 5 Weeks
Solder wire, 554081053010, FELDER
Low-residue no-clean SMD solder wire. Specially adapted to the requirements of re-soldering work on SMD-equipped assemblies. The flux is characterized by high temperature resistance and does not spray during melting. The low flux content in the solder wire, in combination with flux residues from upstream soldering processes, is sufficient for wetting on all common surfaces.
Applications
- Re-soldering and repair soldering in electronics production
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Melting range | 217-227 °C | |
| Halogen free | Yes | |
| Version | solder wire | |
| Lead-free | Yes | |
| Weight | 500 g | |
| diameter | 0.5 mm | |
| alloy | Sn99Ag0.3Cu0.7NiGe |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 83113000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
Signal word
| Property | Value |
|---|---|
| Information on dangerous goods | Supplemental Hazard |
