5518942030 | Felder
Solder, lead-free, Sn99.3CuNiGe, Ø 2 mm, 500 g, 5518942030
Order No.: 11L2632
EAN: 4005796550711
MPN:
5518942030
ISO-Core RA Sn100Ni+ 2,0MM 500G
Series: ISO-Core RA Sn100Ni+
Unit Price (€ / pck.)
61.4397 € *
Standard delivery time from the manufacturer is: 5 Weeks

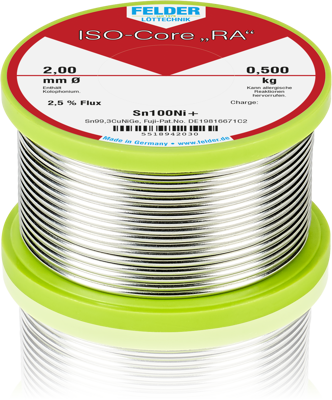

Solder wire, 5518942030, FELDER
Lead-free solder wire is used in industrial assembly production as well as high-temperature applications, for example in the automotive industry (good thermal shock resistance at high temperatures). Continuous temperature resistance at least up to 120°C. Can also be used in older wave soldering systems whose crucibles and nozzles are still made of V2A and do not have protective gassing.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2 mm | |
| Lead-free | Yes | |
| Melting range | 227 °C | |
| Weight | 500 g | |
| alloy | Sn99.3CuNiGe | |
| Halogen free | No | |
| Version | solder wire |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 83113000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
Signal word
| Property | Value |
|---|---|
| Information on dangerous goods | Supplemental Hazard |
