25710071 | Felder

Flux ISO-Flux ClearWave S 1000 mlISO 9454-1 - 2231, IPC J-STD-004 - ORL0

Order No.: 12L1829
MPN:
25710071
Series: CLEARWAVE
Felder
25710071 Felder Flux
Image may differ
Print
Key Specification:
Container bottle
Contents 1000 ml
Lead-free Yes
Halogen free Yes
No-clean Yes

Ordering Information:

not to be sold to private customers
Show 2 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
46.41 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
46.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
46.41 €
Description
Technical specifications
Download
Logistics
Compliance
Signal word
Variations

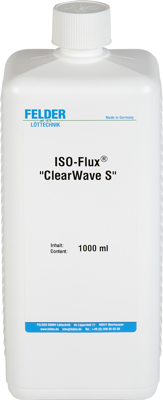

Electronic flux ISO-Flux ClearWave, 25710071, Felder

The 25710071 is an alcohol-based, colophony- and halogen-free no-clean flux for the mechanical soldering of printed circuit boards with THT or SMD assembly. It exhibits excellent activation properties and has excellent spreading properties on all common soldering surfaces. The low solids content ensures optically residue-free soldering. An extremely low acid value and minimal residue after soldering lead to an extremely high surface resistance value in the SIR test. The flux can be applied to the PCB using any known fluxing method. ClearWave S has been optimized for wave soldering systems with foam fluxer application and also for se- lective soldering with a spray fluxer system. The minimal resin content ensures a very fine-pored foam crown and forms a physical resin encapsulation for flux residues that have not fully reacted.
Technical specifications
Container bottle
Contents 1000 ml
Lead-free Yes
Halogen free Yes
No-clean Yes
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 38101000
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Signal word
Gefahrenpiktogramme
Information on dangerous goods

Signal word: Danger

Hazard statements:

  • H225 Highly flammable liquid and vapour
  • H319 Causes serious eye irritation
  • H336 May cause drowsiness or dizziness

Precautionary statements:

  • P101 If medical advice is needed, have product container or label at hand.
  • P102 Keep out of reach of children.
  • P103 Read carefully and follow all instructions.
  • P210 Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking.
  • P303+P361+P353 IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water [or shower].
  • P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
  • P403+P233 Store in a well-ventilated place. Keep container tightly closed.
  • P405 Store locked up.
  • P501 Dispose of contents/container to ...
