F77218B130G300 | Feinmetall

Standard test pin with probe, cone, Ø 1.66 mm, travel  5 mm, pitch 2.54 mm, L 32 mm, F77218B130G300

Order No.: 12H1524
EAN: 4099889467871
MPN:
F77218B130G300
Series: F772

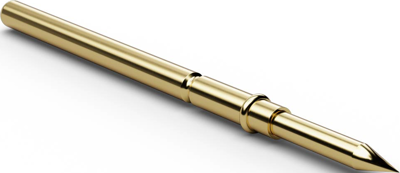

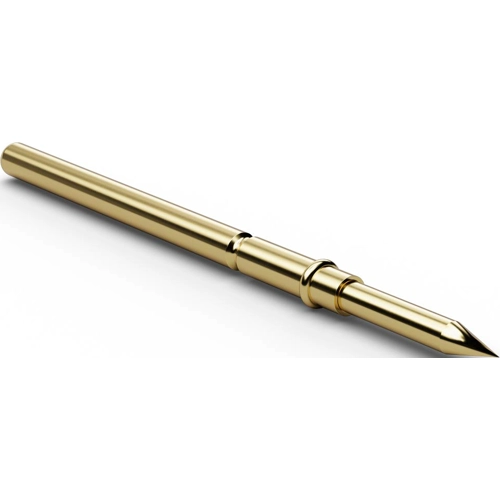

F77218B130G300 Feinmetall Contact Probes Image 1

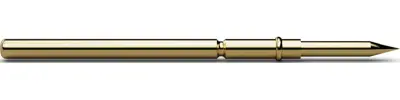

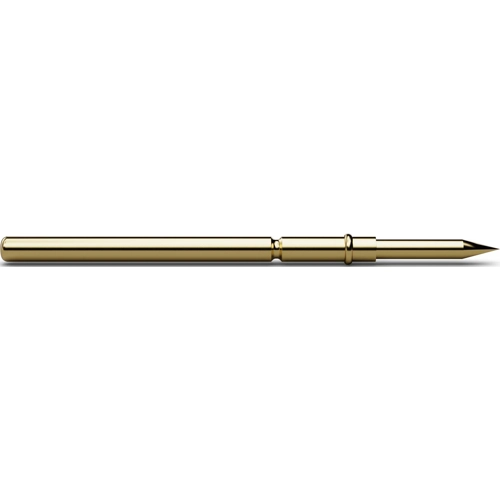

F77218B130G300 Feinmetall Contact Probes Image 2

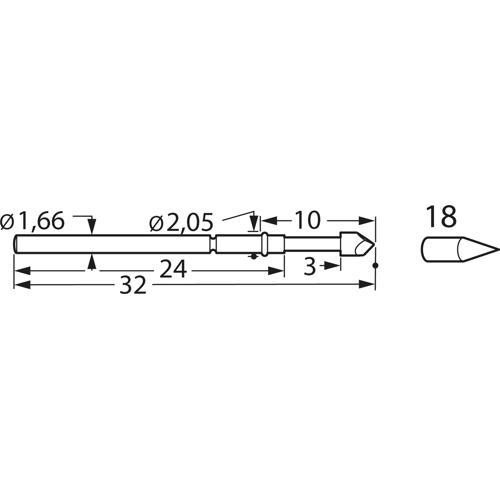

F77218B130G300 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
3.7366 € *
Available: 18 pcs.
Total Price:
3.74 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7366 €
10 pcs.
3.2487 €
100 pcs.
3.0107 €
500 pcs.
2.7608 €
1000 pcs.
2.5109 €
*incl. VAT plus shipping costs
Subject to prior sale

Standard in-circuit probes with plunger tip for 2.54 mm grid, type Feinmetall F772.

For use with two-stage adapters. The H772 receptacle allows a variable and the H712 receptacle a fixed projection height of 10 mm; Projection height: 10 to 17.6 mm. Maximum spring travel: 5.0 mm. Recommended spring travel: 4.0 mm. Prestress: 60 cN. Contact tolerance: ±0.08 mm. Operating temperatures: -20 to +80 °C. Maximum continuous current: 5.0 A. Typical contact resistance: 25 mohm. Barrel: gold-plated new silver. Spring: silver-plated spring steel. Receptacle: new silver, gold plated. Tip designs: 05 concave (cup), 06 serrated (honeycomb), 07 hexagonal 90° (fluted star), 11 round shaft, 14 four-point crown head (self-cleaning), 15 triangular head (pyramid), 17 flat head, 18 conical shaft 30° (spear), 21 four-point crown head.

Spring force 300 cN ±20 %, type F772.

Technical attributes (type, plunger with tip diameter, material, surface (LG gold denotes long-life gold for particular endurance), projection height (PH)): F772.18, probe with plunger tip 18, TD 1.3 mm, CuBe, gold.

Technical specifications
Filter Property Value
Head shape cone
Rated current 5 A
Stroke 5 mm
Grid 2.54 mm
Length 32 mm
diameter 1.66 mm
Material copper beryllium
Logistics
Property Value
Country of origin CZ
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
