F76818B060G130 | Feinmetall

Threaded probe, cone, Ø 0.79 mm, travel  4 mm, pitch 1.27 mm, L 37 mm, F76818B060G130

Order No.: 11H5588
EAN: 4099889466584
MPN:
F76818B060G130
Series: F767

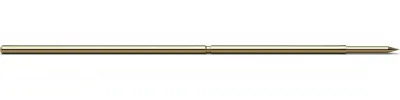

F76818B060G130 Feinmetall Contact Probes Image 1

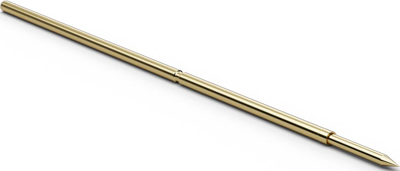

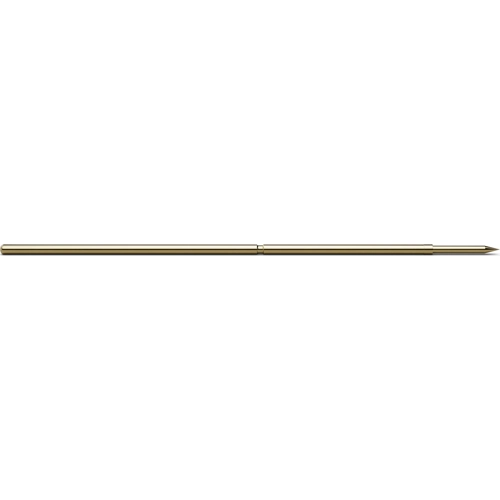

F76818B060G130 Feinmetall Contact Probes Image 2

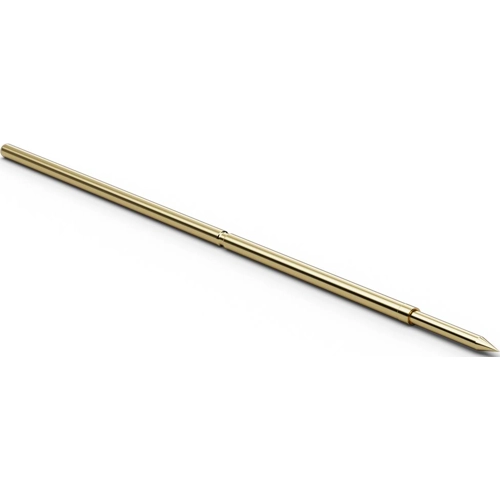

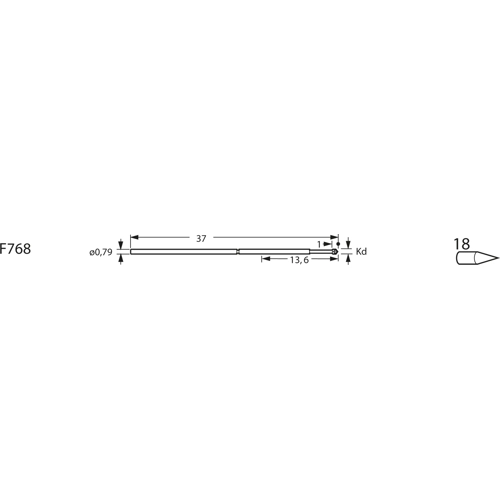

F76818B060G130 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
5.7001 € *
Available: 85 pcs.
Total Price:
5.70 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7001 €
10 pcs.
4.9504 €
100 pcs.
4.5815 €
500 pcs.
4.2126 €
1000 pcs.
3.8318 €
*incl. VAT plus shipping costs
Subject to prior sale

Primarily for fully loaded PCBs (SMD as well). Highly versatile and universal test probe. Receptacle H787 with pressure ring for variable projection height.

Projection height F767/F768: 5.6 to 13.6/8.0 to 16 mm (H787), 10.0 mm (H768).

Maximum spring travel F767/768: 8.0/4.0 mm.

Recommended spring travel: F767/F768: 6.4/3.2 mm.

Prestress F767/F768: 35/40 cN.

Spring force at recommended spring travel: F767/F768: 165/130 cN ±20 %.

Contact tolerance F767/F768: ±0.05/±0.07 mm.

Operating temperatures: - 20 to +80 °C.

Maximum continuous current: 2.0 A.

Typical contact resistance: 30 mohm.

Barrel: gold-plated bronze.

Spring: gold-plated spring steel.

Tip designs: 06 serrated (honeycomb), 07 hexagonal (fluted star) 90°, 11 round tip, 18 conical shaft (spear) 30°, 21 four-point crown head (self-cleaning), 33 lance shaft (dagger).

Table index: type, plunger with tip design, tip diameter TD, material, finish (long-life gold for particularly long tool life).

Type: F768.18, probe with plunger tip 18, TD 0.6 mm, CuBe, gold

Technical specifications
Head shape cone
Rated current 2 A
Stroke 4 mm
Grid 1.27 mm
Length 37 mm
diameter 0.79 mm
Material copper beryllium
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
