F70611B130G200 | Feinmetall

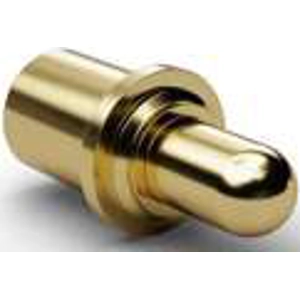

Short stroke test pin with probe, round head, Ø 2.53 mm, travel 1.2 mm, pitch 2.7 mm, L 5.3 mm, F70611B130G200
Unit Price (€ / pc.)
4.3197 € *
Available: 45 pcs.
Total Price:
4.32 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3197 €
10 pcs.
3.7485 €
100 pcs.
3.4748 €
500 pcs.
3.1892 €
1000 pcs.
2.9036 €
*incl. VAT plus shipping costs
Subject to prior sale
Short-stroke probes with tip for 2.7 mm grid, type Feinmetall F706.
For restricted assembly heights; Projecting height: 3.0 mm. Maximum spring travel: 1.2 mm. Recommended spring travel: 1.0 mm. Prestress: 20 cN. Spring force at recommended spring travel: 200 cN ±20 %. Contact tolerance: ±0.08 mm. Operating temperatures: -20 to +80 °C. Maximum continuous current: 5.0 A. Typical contact resistance: 20 mohm. Barrel: gold-plated brass. Spring: silver-plated spring steel. Receptacle: gold-plated bronze. Tip designs: 11 round shaft, 29 four-point crown head.
Technical attributes (type, plunger with tip design, tip diameter (TD), material, finish): F706.11B130G200, probe with plunger tip 11, TD 1.3 mm, CuBe, gold.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Head shape | round head | |
| Rated current | 5 A | |
| Stroke | 1.2 mm | |
| Grid | 2.7 mm | |
| Length | 5.3 mm | |
| diameter | 2.53 mm | |
| Material | copper beryllium |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
