F23801B027L050 | Feinmetall

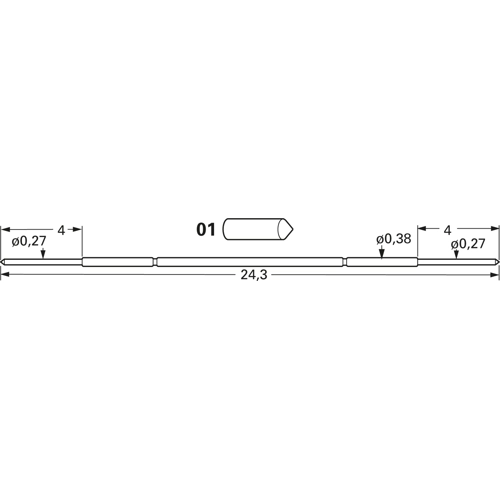

Fine grid test probe with probe head, cone, Ø 0.27 mm, travel 2.5 mm, pitch 0.5 mm, L 24.3 mm, F23801B027L050
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
10.1864 € *
Available: 2 pcs.
Total Price:
10.19 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1864 €
10 pcs.
9.4248 €
100 pcs.
8.6632 €
500 pcs.
8.1515 €
1000 pcs.
7.3899 €
*incl. VAT plus shipping costs
Subject to prior sale
Fine pitch probes with plunger tip for 0.5 mm grid, type Feinmetall F238.
Double-plunger spring probe for component testing (ICs, MCMs, CDs, etc.). Connection to interface (translator board or similar) by means of spring-loaded interface plunger. Min; mounting pitch: 0.5 mm. Maximum spring travel: 2.5 mm. Recommended spring travel: 2.0 mm. Prestress: 10 cN/m. Spring force at recommended spring travel: 50 cN ±20 %. Contact tolerance: ±0.04 mm. Operating temperatures: -20 to +80 °C. Maximum continuous current: 0.5 A. Contact resistance: 350 mohm. Barrel: silver-plated bronze. Spring: silver-plated spring steel. Interface plunger: CuBe, hard-wearing gold finish. Tip design: 01 conical shaft 90 °. Tip diameter: 0.27 mm.
Type: F238.01, test probe with tip 01.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Head shape | cone | |
| Rated current | 0.5 A | |
| Stroke | 2.5 mm | |
| Grid | 0.5 mm | |
| Length | 24.3 mm | |
| diameter | 0.27 mm | |
| Material | copper beryllium |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
