2619S006 SR8:1 | Faulhaber
DC gear motor, 6 V (DC), 1.08 W, 8:1, 10 Ncm, 6600 1/min, 2619S006 SR8:1
Order No.: 90B8040
EAN: 4099891527273
MPN:
2619S006 SR8:1
2619.80009
Discontinued
Unit Price (€ / pc.)
68.8534 € *
Available: 6 pcs.
Total Price:
68.85 € *
Price list
Quantity
Price per unit*
1 pcs.
68.8534 €
5 pcs.
64.7360 €
15 pcs.
62.2489 €
50 pcs.
59.5000 €
150 pcs.
57.0010 €
*incl. VAT plus shipping costs
Subject to prior sale

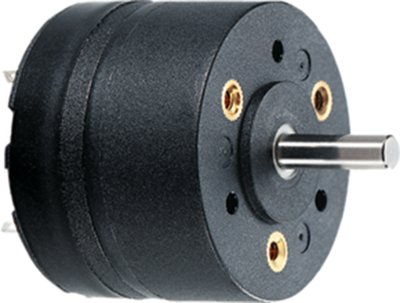

DC geared motors, type Faulhaber 2619 S.
With flat ironless rotor in plastic case; Operating temperatures: –30 to +80 °C.
Rated voltage 6.0 V.
Output power: 1.08 W. No-load speed (motor): 6600 rpm.
Technical attributes (type, gear reduction ratio, secondary speed, continuous /intermittent torque): 006 SR 8:1, 8:1, 635 rpm, 9.0/30 mN/m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 80 °C | |
| min. operating temperature | -30 °C | |
| Power | 1.08 W | |
| Gear transmission | 8:1 | |
| Version | DC gear motor | |
| Torque | 10 Ncm | |
| Rated voltage (DC) | 6 V | |
| speed | 6600 1/min |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85011099 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
