2607T012SR | Faulhaber
DC small motor, 12 V (DC), 0.97 W, 0.17 A, 3 mNm, 5500 1/min, 2607T012SR
Order No.: 90B8004
EAN: 4099891527259
MPN:
2607T012SR
2607.80003

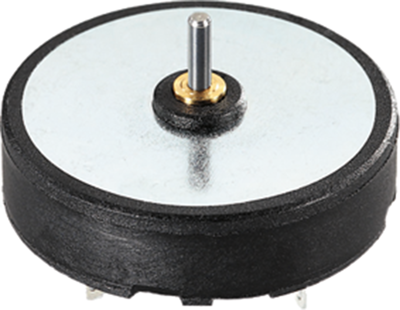

Thin profile DC micro motors, type Faulhaber 2607 T.
With flat ironless rotor and sintered bearings; Recommended speed: max. 5500 rpm. Continuous torque: 3.0 mN/m. Direction of rotation: clockwise (viewed from the drive shaft). Operating temperatures: –30 to +80 °C.
Technical attributes (type, rated voltage, output power, no-load speed, stall torque / frictional torque): 012 SR, 12 V, 0.97 W, 5900 rpm, 6.21/0,07 mN/m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC micro motor | |
| Rated voltage (DC) | 12 V | |
| Power | 0.97 W | |
| Rated current | 0.17 A | |
| Torque | 3 mNm | |
| speed | 5500 1/min | |
| min. operating temperature | -30 °C | |
| max. operating temperature | 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85011099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
