Faulhaber

2607T006SR | Faulhaber

DC small motor, 6 V (DC), 1.08 W, 3 mNm, 5500 1/min, 2607T006SR

default S
front S
default L
front L
Total price
(57.22 € * / pcs.)
57.22 €
Available: 11 pcs.
Quantity
Price per piece*
1 pcs.
57.22 €
5 pcs.
53.22 €
10 pcs.
49.48 €
25 pcs.
45.53 €
*incl. VAT plus shipping costs
Show variants
Description

Product by Faulhaber at Bürklin Elektronik

Motors, Faulhaber

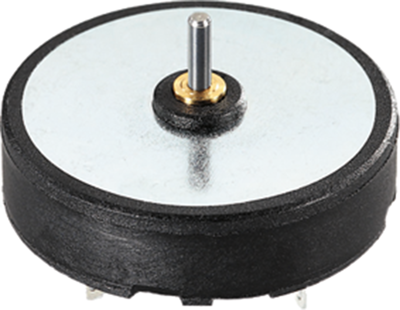

Thin profile DC micro motors, type Faulhaber 2607 T.

With flat ironless rotor and sintered bearings; Recommended speed: max. 5500 rpm. Continuous torque: 3.0 mN/m. Direction of rotation: clockwise (viewed from the drive shaft). Operating temperatures: –30 to +80 °C.

Technical attributes (type, rated voltage, output power, no-load speed, stall torque / frictional torque): 006 SR, 6.0 V, 1.08 W, 6600 rpm, 6.26/0,06 mN/m

Technical specifications
Version DC micro motor
Torque 3 mNm
speed 5500 1/s
Power 1.08 W
max. operating temperature 80 °C
min. operating temperature -30 °C
Rated voltage (DC) 6 V
Logistics
Country of origin DE
Customs tariff number 85011099
Compliance
Exception code 6A_6C
Exception code description Pb
Guidline date 3/31/15
RoHS confom Yes
Substance CAS number 7439-92-1
Substance code 1221
Substance EC number 231-100-4
Substance description Lead
SVHC date 6/10/22
SVHC free No
Download
Technical Data Sheet - DE
Technical Data Sheet
Variations
1 item with 4 variations
Item description
Price list
Total
speed
Version
min. operating temperature
Rated voltage (DC)
max. operating temperature
Rated current
Torque
Power
DC small motor, 12 V (DC), 0.97 W, 0.17 A, 3 mNm, 5500 1/min, 2607T012SR
Order No.:
 90B8004
Manufacturer:
 Faulhaber
Manufacturer SKU
 2607T012SR
1 pcs.
57.22 €
5 pcs.
53.22 €
10 pcs.
49.48 €
25 pcs.
45.53 €
57.22 € *
Available: 4 pcs.
5500 1/s
DC micro motor
-30 °C
12 V
80 °C
0.17 A
3 mNm
0.97 W
DC small motor, 6 V (DC), 1.08 W, 3 mNm, 5500 1/min, 2607T006SR
Order No.:
 90B8002
Manufacturer:
 Faulhaber
Manufacturer SKU
 2607T006SR
1 pcs.
57.22 €
5 pcs.
53.22 €
10 pcs.
49.48 €
25 pcs.
45.53 €
57.22 € *
Available: 11 pcs.
5500 1/s
DC micro motor
-30 °C
6 V
80 °C
3 mNm
1.08 W
DC small motor, 3 V (DC), 1.16 W, 3 mNm, 5500 1/min, 2607T003SR
Order No.:
 90B8000
Manufacturer:
 Faulhaber
Manufacturer SKU
 2607T003SR
1 pcs.
50.37 €
5 pcs.
40.98 €
20 pcs.
31.48 €
50 pcs.
30.01 €
100 pcs.
28.42 €
0.00 € *
Currently not in stock, we will order for you
5500 1/s
DC micro motor
-30 °C
3 V
80 °C
3 mNm
1.16 W
DC small motor, 24 V (DC), 1.1 W, 0.002 A, 3 mNm, 5500 1/min, 2607T024SR
Order No.:
 90B8006
Manufacturer:
 Faulhaber
Manufacturer SKU
 2607T024SR
1 pcs.
99.08 €
2 pcs.
94.13 €
0.00 € *
Currently not in stock, we will order for you
5500 1/s
DC micro motor
-30 °C
24 V
80 °C
0.002 A
3 mNm
1.1 W
