XHBCC-332J-01 | Fastron

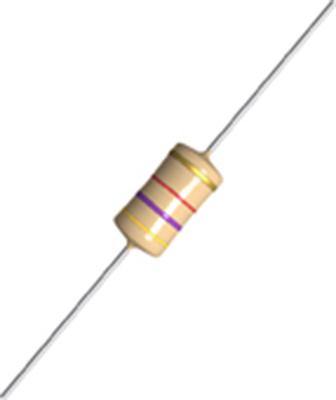

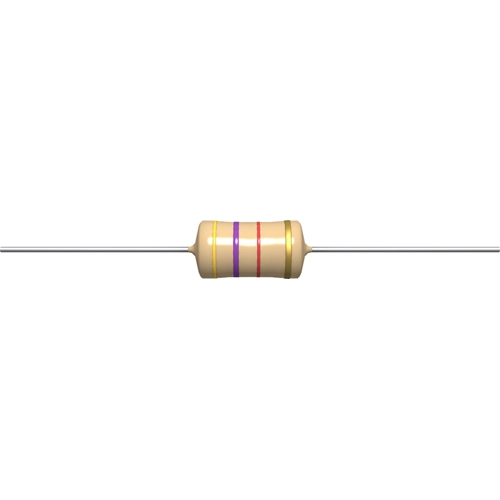

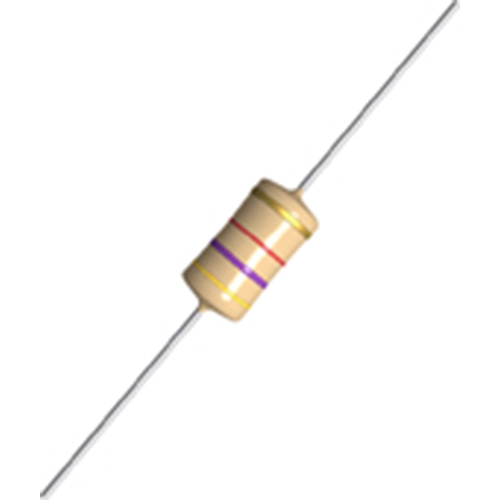

RF choke, axial, 3.3 mH, 295 mA, XHBCC-332J-01
Unit Price (€ / pc.)
0.8806 € *
Available in 4 Days: 8,000 pcs. - if ordered today
Total Price:
0.88 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8806 €
10 pcs.
0.7735 €
100 pcs.
0.6545 €
500 pcs.
0.5712 €
1000 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale
RF inductor, XHBCC-332J-01, FASTRON
The XHBCC-332J-01 is a leaded inductor which uses magnetic field produced by the effect of coils or windings of a conducting wire. It holds a charge or power after a certain time and can maintain that power source even when an outside supply is removed.
Features
- Very wide inductance
- High Q value
Applications
- Decoupling and interference suppression
- RF blocking and filtering
- Automotive electronics
- Lighting devices
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Quality Q | Q 45 | |
| DC current | 295 mA | |
| Saturation current | 320 mA | |

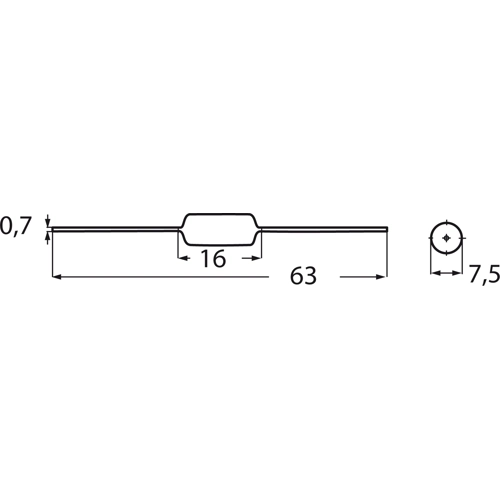

| Length | 16 mm | |
| DC resistance | 7.2 Ω | |
| Measuring frequency | 252 kHz | |
| Version | RF choke | |
| Design | axial | |
| Tolerance | ±5 % | |
| Inductance | 3.3 mH |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1 piece |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
