XHBCC-222J-01 | Fastron

RF choke, axial, 2.2 mH, 335 mA, XHBCC-222J-01

Order No.: 74D1416
EAN: 4099889007909
MPN:
XHBCC-222J-01
Series: XHBCC

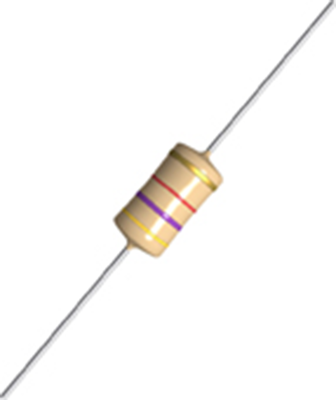

XHBCC-222J-01 Fastron Fixed Inductors Image 1
XHBCC-222J-01 Fastron Fixed Inductors Image 2
XHBCC-222J-01 Fastron Fixed Inductors Image 3
Image may differ
Unit Price (€ / pc.)
1.0829 € *
Available in 4 Days: 45 pcs. - if ordered today
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
10 pcs.
0.7735 €
100 pcs.
0.6545 €
500 pcs.
0.5712 €
1000 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale

RF inductor, XHBCC-222J-01, FASTRON

The XHBCC-222J-01 is a leaded inductor which uses magnetic field produced by the effect of coils or windings of a conducting wire. It holds a charge or power after a certain time and can maintain that power source even when an outside supply is removed.

Features

  • Very wide inductance
  • High Q value

Applications

  • Decoupling and interference suppression
  • RF blocking and filtering
  • Automotive electronics
  • Lighting devices
Technical specifications
Filter Property Value
Tolerance ±5 %
Saturation current 380 mA
Version RF choke
DC current 335 mA

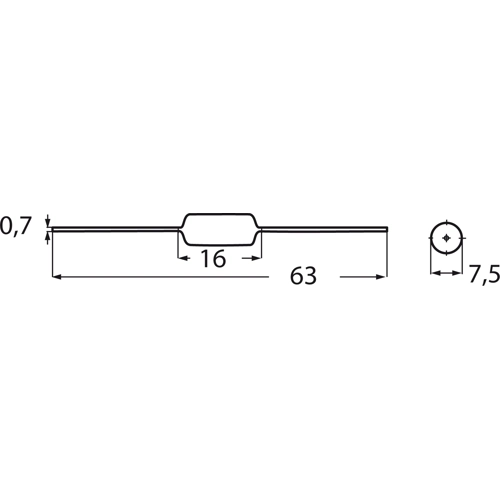

Length 16 mm
Quality Q Q 55
DC resistance 5.5 Ω
Design axial
Measuring frequency 252 kHz
Inductance 2.2 mH
Logistics
Property Value
Original Packaging Reel with 100 pieces
Customs tariff number 85045000
Country of origin MY
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
