XHBCC-221K-01 | Fastron

RF choke, axial, 220 µH, 1.12 A, XHBCC-221K-01

Order No.: 74D1404
EAN: 4099889007862
MPN:
XHBCC-221K-01
Series: XHBCC

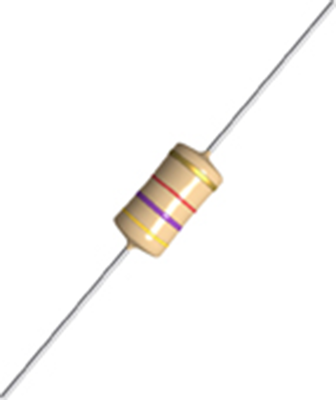

XHBCC-221K-01 Fastron Fixed Inductors Image 1
XHBCC-221K-01 Fastron Fixed Inductors Image 2
XHBCC-221K-01 Fastron Fixed Inductors Image 3
Image may differ
Unit Price (€ / pc.)
1.7850 € *
Available: 276 pcs.
Available in 4 Days: 202 pcs. - if ordered today
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.1186 €
100 pcs.
0.9044 €
200 pcs.
0.8449 €
1000 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale

RF inductor, XHBCC-221K-01, FASTRON

The XHBCC-221K-01 is a leaded inductor which uses magnetic field produced by the effect of coils or windings of a conducting wire. It holds a charge or power after a certain time and can maintain that power source even when an outside supply is removed.

Features

  • Very wide inductance
  • High Q value

Applications

  • Decoupling and interference suppression
  • RF blocking and filtering
  • Automotive electronics
  • Lighting devices
Technical specifications
Filter Property Value
Tolerance ±10 %
Saturation current 1.26 A
Version RF choke
DC current 1.12 A
Length 16 mm
Quality Q Q 25
DC resistance 490 mΩ
Design axial
Measuring frequency 796 kHz
Inductance 220 µH
Logistics
Property Value
Original Packaging Reel with 100 pieces
Customs tariff number 85045000
Country of origin MY
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
