XHBCC-151K-01 | Fastron

RF choke, axial, 150 µH, 1.26 A, XHBCC-151K-01

Order No.: 74D1402
EAN: 4099889007855
MPN:
XHBCC-151K-01
Series: XHBCC

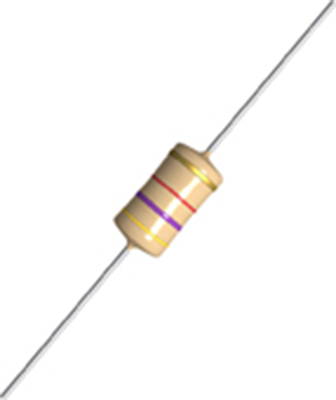

XHBCC-151K-01 Fastron Fixed Inductors Image 1
XHBCC-151K-01 Fastron Fixed Inductors Image 2
XHBCC-151K-01 Fastron Fixed Inductors Image 3
Image may differ
Unit Price (€ / pc.)
0.5236 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
418.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
0.5236 €

RF inductor, XHBCC-151K-01, FASTRON

The XHBCC-151K-01 is a leaded inductor which uses magnetic field produced by the effect of coils or windings of a conducting wire. It holds a charge or power after a certain time and can maintain that power source even when an outside supply is removed.

Features

  • Very wide inductance
  • High Q value

Applications

  • Decoupling and interference suppression
  • RF blocking and filtering
  • Automotive electronics
  • Lighting devices
Technical specifications
Filter Property Value
Tolerance ±10 %
Saturation current 1.51 A
Version RF choke
DC current 1.26 A
Length 16 mm
Quality Q Q 30
DC resistance 0.39 Ω
Design axial
Measuring frequency 796 kHz
Inductance 150 µH
Logistics
Property Value
Original Packaging Reel with 800 pieces
Customs tariff number 85045000
Country of origin MY
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
