XHBCC-104J-01 | Fastron

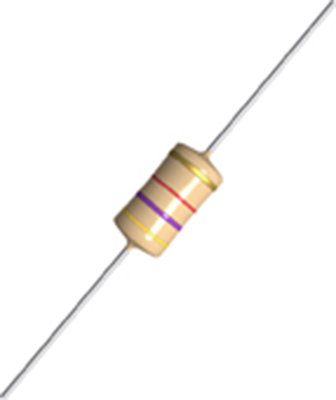

RF choke, axial, 100 mH, 50 mA, XHBCC-104J-01
Unit Price (€ / pc.)
0.7735 € *
Available in 4 Days: 104 pcs. - if ordered today
Total Price:
541.45 € *
Price list
Quantity
Price per unit*
700 pcs.
0.7735 €
800 pcs.
0.7378 €
*incl. VAT plus shipping costs
Subject to prior sale
RF inductor, XHBCC-104J-01, FASTRON
The XHBCC-104J-01 is a leaded inductor which uses magnetic field produced by the effect of coils or windings of a conducting wire. It holds a charge or power after a certain time and can maintain that power source even when an outside supply is removed.
Features
- Very wide inductance
- High Q value
Applications
- Decoupling and interference suppression
- RF blocking and filtering
- Automotive electronics
- Lighting devices
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 16 mm | |
| DC current | 50 mA | |
| Saturation current | 60 mA | |
| Inductance | 100 mH | |
| Quality Q | Q 40 | |
| Measuring frequency | 25 kHz | |
| Design | axial | |
| DC resistance | 245 Ω | |
| Version | RF choke | |
| Tolerance | ±5 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1 piece |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
