TLC/5A-101M-00 | Fastron

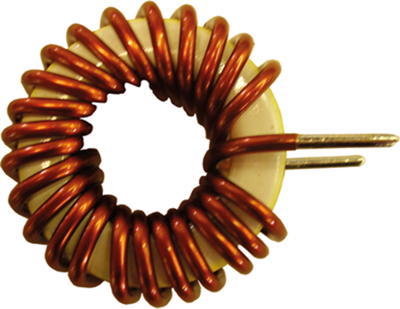

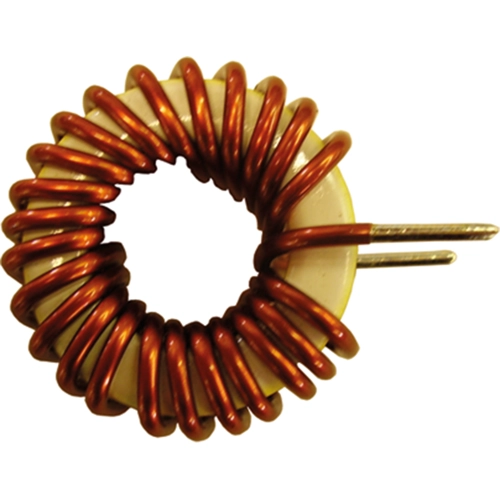

Toroidal choke, radial, 100 µH, 5 A, TLC/5A-101M-00
Unit Price (€ / pc.)
5.0694 € *
Available: 103 pcs.
Total Price:
5.07 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0694 €
10 pcs.
4.4506 €
120 pcs.
3.9032 €
240 pcs.
3.7604 €
960 pcs.
3.5224 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring-core inductor, TLC/5A-101M-00, Fastron
The TLC/5A-101M-00 provides an efficient means of filtering supply lines that have in-phase signals of equal amplitude thus allowing equipment to meet stringent electrical radiation specifications.
Features
- Toroid Line Chokes offer a wide range of Induction values from 10µH to 1mH
- A current from 0.1A up to 10A is available
- They come in vertical mounted versions for THT assembly
- The copper wire current density is arount 6.5A/qmm
- The core material is an iron-powder mixture giving high saturation currents
Applications
- Applied in Power Supplies, switched mode Power Supplies, Output-chokes, Control Units, EMI/RFI- Suppression Chokes, Line-Fillers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 5 A | |
| DC resistance | 37 mΩ | |
| Saturation current | 5 A | |
| Measuring frequency | 1 kHz | |
| Tolerance | ±20 % | |
| Width | 19 mm | |
| Inductance | 100 µH | |
| Design | radial | |
| Version | toroidal choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Carton with 120 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
