TLC/1A-470M-00 | Fastron

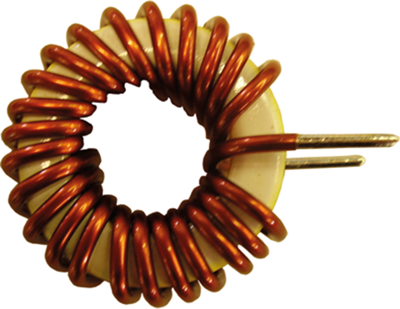

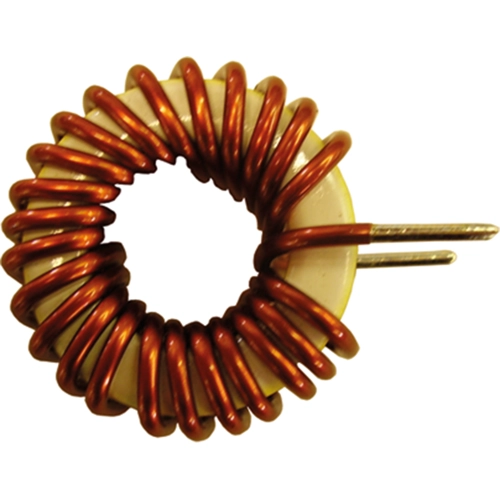

Toroidal choke, radial, 47 µH, 1 A, TLC/1A-470M-00
Unit Price (€ / pc.)
1.6422 € *
Available in 4 Days: 604 pcs. - if ordered today
Ring-core inductor, TLC/1A-470M-00, Fastron
The TLC/1A-470M-00 provides an efficient means of filtering supply lines that have in-phase signals of equal amplitude thus allowing equipment to meet stringent electrical radiation specifications.
Features
- Toroid Line Chokes offer a wide range of Induction values from 10µH to 1mH
- A current from 0.1A up to 10A is available
- They come in vertical mounted versions for THT assembly
- The copper wire current density is arount 6.5A/qmm
- The core material is an iron-powder mixture giving high saturation currents
Applications
- Applied in Power Supplies, switched mode Power Supplies, Output-chokes, Control Units, EMI/RFI- Suppression Chokes, Line-Fillers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 1 A | |
| DC resistance | 78 mΩ | |
| Saturation current | 1 A | |
| Measuring frequency | 1 kHz | |
| Tolerance | ±20 % | |
| Width | 7 mm | |
| Inductance | 47 µH | |
| Design | radial | |
| Version | toroidal choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Carton with 100 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
