PISR-471M-04 | Fastron

Power choke, SMD, 470 µH, 850 mA, PISR-471M-04

Order No.: 74D4832
EAN: 4099889012569
MPN:
PISR-471M-04
Series: PISR

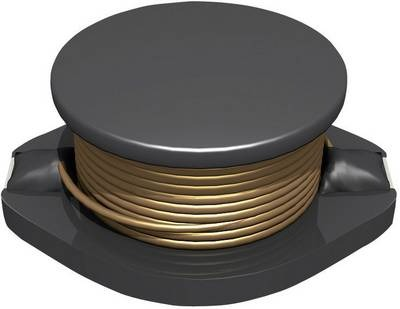

PISR-471M-04 Fastron Fixed Inductors Image 1
PISR-471M-04 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
1.8683 € *
Available: 106 pcs.
Available in 4 Days: 150 pcs. - if ordered today
Total Price:
5.60 € *
Price list
Quantity
Price per unit*
3 pcs.
1.8683 €
15 pcs.
1.6422 €
75 pcs.
1.4399 €
400 pcs.
1.3209 €
800 pcs.
1.2376 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD Power inductor, PISR-471M-04, Fastron

Power Inductors (with tube/also shielded)-Surface Mount Type

Features

  • Power inductors can withstand a wide temperature range
  • The inductance values range from 1.0 µH to 10000 µH and they are suitable for high rated currents
  • They have a high reliability and can be assembled by surface mount technology
  • Their DC resistance keeps power losses to a minimum
  • They are also suitable for Filtering of supply voltages, Coupling, Decoupling, Automotive electronics and Network switching systems

Applications

  • These components are widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters
Technical specifications
Filter Property Value
Inductance 470 µH
DC current 850 mA
DC resistance 0.76 Ω
Design SMD
Version power choke
Width 15.2 mm
Height 7.5 mm
Saturation current 1.4 A
Tolerance ±20 %
Measuring frequency 100 kHz
Length 18.7 mm
Logistics
Property Value
Country of origin MY
Original Packaging Reel with 250 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
