PISA4119-470M-04 | Fastron

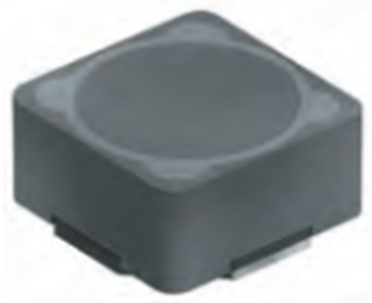

Power choke, SMD 4119, 47 µH, 1.65 A, PISA4119-470M-04
Unit Price (€ / pc.)
2.023 € *
Available in 4 Days: 400 pcs. - if ordered today
Shielded surface mount, PISA4119-470M-04, Fastron
Power inductor PISA4119-470M-04 can withstand a wide temperature range. The inductance value is suitable for high rated currents. This product has a high reliability and can be assembled by surface mount technology. Low DC resistance keeps power losses to a minimum. It is also suitable for filtering of supply voltages, coupling, decoupling, automotive electronics and network switching systems.
Applications
- This component is widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 1.65 A | |
| DC resistance | 0.142 Ω | |
| Saturation current | 1.36 A | |
| Measuring frequency | 100 kHz | |
| Tolerance | ±20 % | |
| Length | 10.4 mm | |
| Height | 5.2 mm | |
| Width | 10.4 mm | |
| Inductance | 47 µH | |
| Design | SMD 4119 | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 100 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
